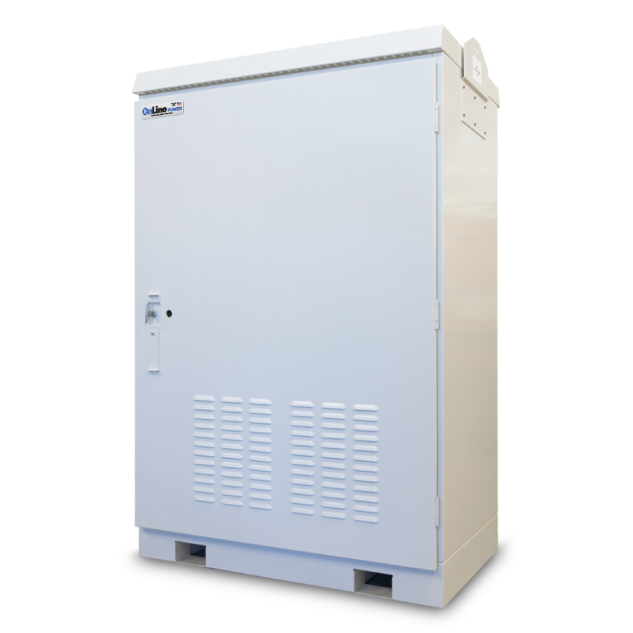

Harsh Environment UPS (2.1-17 KW)
Emergency Lighting Inverter for INDOOR & OUTDOOR
Emergency Lighting Inverter for INDOOR & OUTDOOR
Features
2.1 to 17 KW
Suitable for Harsh Environment, Outdoor Applications
AC Line Conditioning for Signals, Signs and Lighting
Small Foot Print
Meets NEMA Requirements
Fail-Safe Provision
Optional Global Monitoring System (GMS)
Optional Battery Monitoring System (BMS)
2 year Factory Warranty
| Power Rating | 2.1, 3, 3.5, 5, 5.25, 6, 7, 7.5, 8.75, 10, 10.5, 12.5, 14, 15, 17 KW |
| Input Voltage | 120, 208, 240, 277, or 480 VAC |
| Output Voltages | 120, 208, 240, 277, or 480 VAC |
| Output Frequency (Inverter Operation) |
60 Hz ±0.5 Hz |
| OutputVoltage Regulation |
±3% |
| Output Wave Form | Sine-Wave < 5% THD. |
| Efficiency | 92 to 93% |
| Crest Factor | 3:1 Typical |
| Surge Protection | The UPS will protect itself and the load against surges as defined in ANSI/IEEE C62.41 Categories A and B. |
| Isolation | Complete from line. Output neutral bonded to ground (with otuput transformer only) |
| Noise Isolation | -120 dB Common-Mode; -60 dB Transverse-Mode |
| Battery | Sealed maintenance-free (AGM) battery |
| Battery Voltage | KVA dependent |
| Optional Battery | Long life, High temperature |
| Recharge Time | Conforms to UL924 |
| External Battery | Provisions for hardwire connection of optional external battery cabinets or DC source. |
| Environmental Humidity | 0 - 95% RH w/ no condensation |
| Operating Temperature | -20˚ to 50˚C. (-4˚ to 122˚F) electronics only. |
| Storage Temperature | -20˚ to 70˚C. (-4˚ to 158˚F) electronics only. |
| Altitude | Up to 10,000 ft |
| Safety Agencies | CUL, CSA Listed to UL1778, UL924 |
| Cabinet Sizes with Standard Run Times |
3 - 5 KVA: 39"(W) x 73.5"(H) x 20"(D) 7.5 - 20 KVA: 51"(W) x 77.5"(H) x 33.5"(D) |
HEUPS
Outdoor and Indoor Applications: Stadium, Gymnasium, Amphitheater, Convention Center, Parking Structure, Emergency and Security Lights. All type of lighting including self-ballast Fluorescent, Incandescent, quartz re-strike, halogen, HID, HPS and LED lighting.
